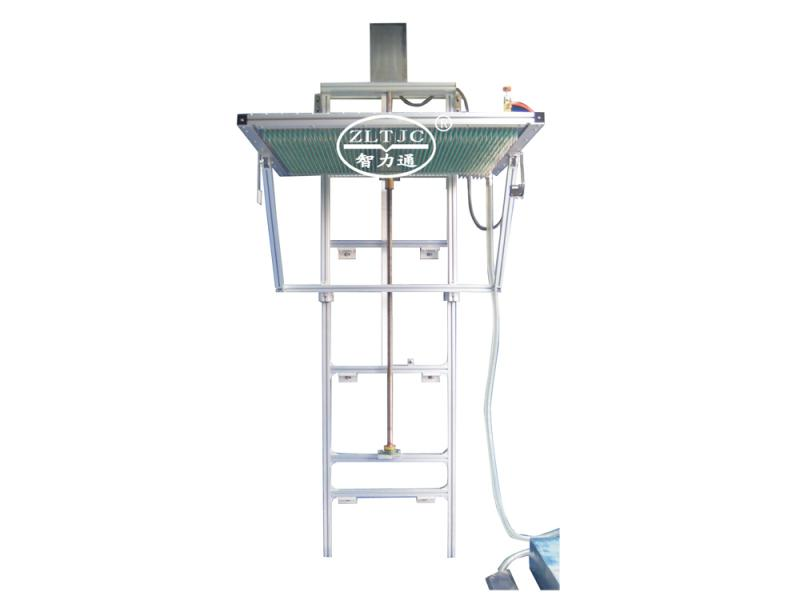

Bosca tástála drip
Bosca Drip de IEC60529 IPX1 IPX2 Fearas Tástála Uiscedhíonach
Sonraí P Roduct: Samhail ZLT-DB
Chun an chosaint in aghaidh an uisce a sheiceáil chun na céimeanna cosanta a chruthú leis an dara uimhreacha saintréith 1 'Cosaint in aghaidh Uisce Titeann' agus 2 'Cosaint eiseamal i suíomh tilt i gcoinne titeann uisce'

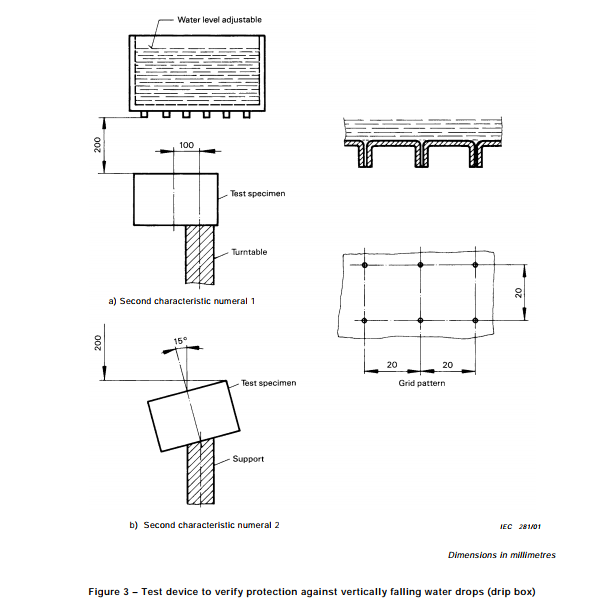

De réir IEC60529 Fíor 3 Tábla 8, Clásal IEC60335-1 IC60335-1, IEC60947-1 Iarscríbhinn C.14.1, Clásal IEC60598-1 9.2.3
Outfit Caighdeánach:
1 water tank with drip nozzle in the bottom spaced 20 mm Χ20 mm, provided with a hermetically tight cover, with overpressure/ air drain valve, with 1 aluminum support frame for suspending, precisely adjustable for leveling,
1 flow controlling valve with flow indication, with ball valve and rapid coupling to feed or to drain the water, on a separate plate for mounting on the wall,
1 set of hoses to feed and to Drain an t -uisce agus an róbhrú, gach ceann de 5 m ar fhad,
1 sraith de ghléasanna ulóg chun airde drip a rialú ó 200 mm go 2000 mm inchoigeartaithe go neamh -inchoigeartaithe leis na braiteoirí infridhearg,
1 sraith de shoic drip de 2651 le φ0,4 mm, spás drip 1000 mm χ 1000 mm.
