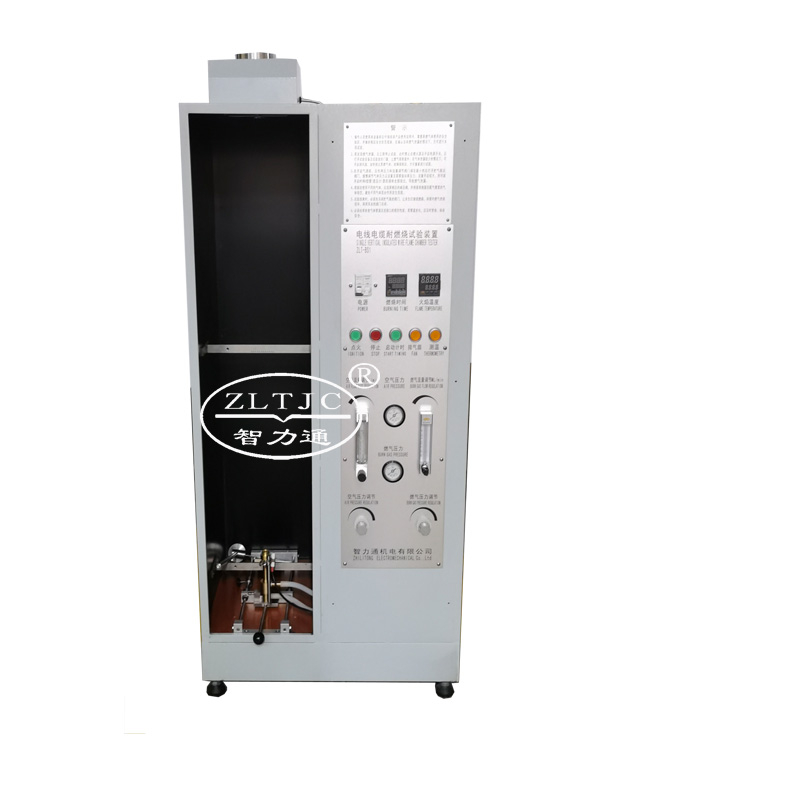

Flame Propagation Test for a Single Insulated Cable of IEC 60332


We are professional Flame propagation Tester manufacturers, 1 KW pre-mixed flame test Machine for Single Insulated cable Flame Chamber Tester,according in IEC60332-1 and IEC60332-1-2.
  • Item NO.:ZLT-BS1
  • Order(MOQ):1
  • Payment:T/T
  • Product Origin:China
  • Shipping Port:Guangzhou
  • Lead Time:20 days

Flame Propagation Test for a Single Insulated Cable

1 KW pre-mixed flame test Machine for Single Insulated cable Flame Chamber Tester.

Product details:Model ZLT-BS1

This apparatus is  for testing the resistance to vertical flame propagation for a single vertical electrical insulated conductor or cable, or optical fibre cable.conform to IEC60332-1 and IEC60332-1-2.

Specifications:

Flame standard: IEC60695-11-2,1KW nominal pre-mixed flame
Burner tube: IEC60695-11-2 figure A
Burning angle

45°

Thermocouple

Type K (Ni/Cr – Ni/Al),200°1050°

Thermocouple Size O/D

0.5 mm
Temperature Resolution

1oC

Standard copper block weight:10 ± 0 .05 g before drilling. Cu-ETP
Gas supple(do not procide)

propane,min.95% purity

Input power

220 V 50 Hz 3A or 115 V 60HZ  Optional

Inner dimensions

W*D*H=300mm*450mm*1200mm

Flame Propagation Test for a Single Insulated CableFlame Propagation Test for a Single Insulated Cable
