IEC60335-2-9 Induction Wok Hotplates Mechanical Strength Test Device

We are professional Induction Wok Hotplates Mechanical Strength Test Device manufacturers,Induction Wok Hotplates Mechanical Strength Test Device,to test the mechanical strength of the portable cooking appliances induction wok hotplates,according to IEC60335-2-9 clause 21.101 and IEC 60335-2-6 clause 21.102.

Quantity:
Availability:





Inquire Add to Basket

Model:
ZLT-SZ3
Brand:
ZLTJC
Code:
ZLT-SZ3

Product Description

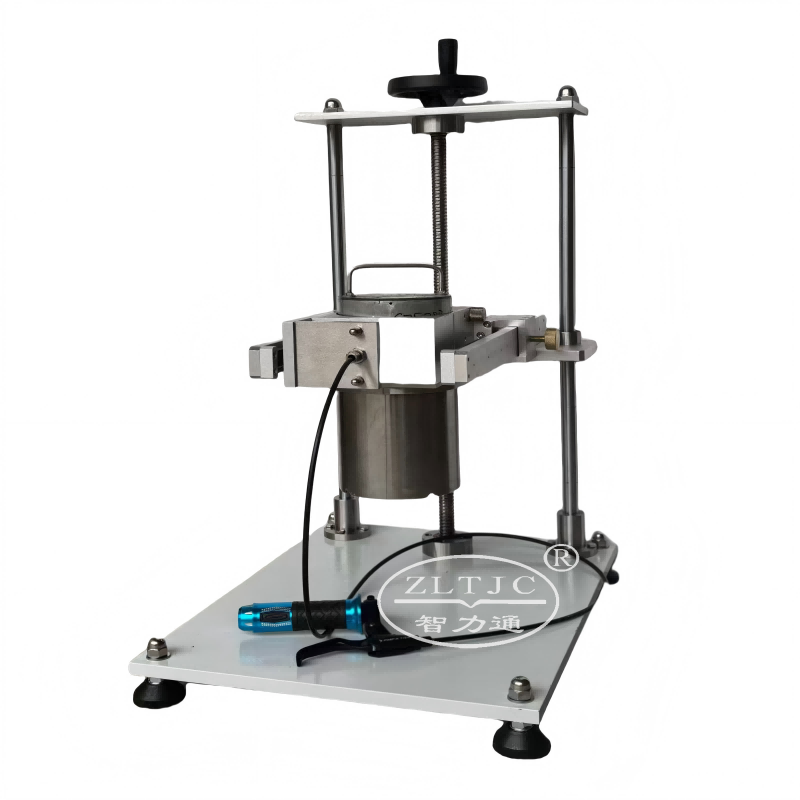

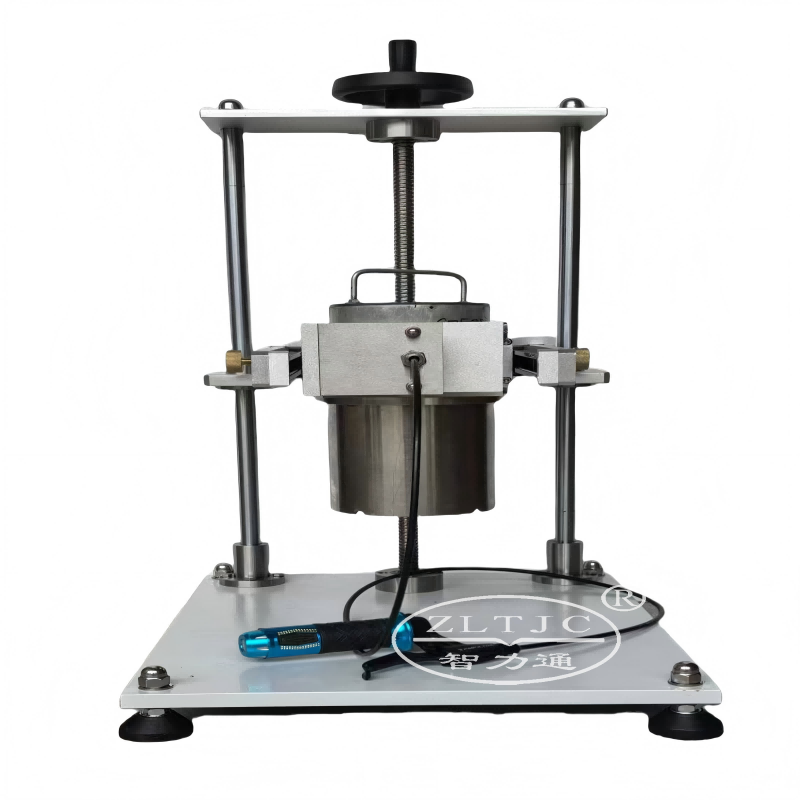

Induction Wok Hotplates Mechanical Strength Test Device:

Product Details:Model ZLT-SZ3

To test the mechanical strength of the portable cooking appliances^,s induction wok hotplates, according to IEC60335-2-9 clause 21.101 and IEC 60335-2-6 clause 21.102.

The hotplate is operated at rated power input with its control adjusted to the highest setting,induction hotplates are operated as specified in IEC60335-2-9 clause 11,when steady conditions are established,the hotplate is switched off and a vessel with its base horizontal is dripped from a height of 150 mm onto the cooking zone.

Standard Outfit:

1 vessel,has a aluminium base,with a diameter of 120 mm±10 mm,weight of (0.5±0.01)kgs.

1 Impact support,drop height of 150 mm.

1 induction wok hotplates support base.
