Practical best practices keep test probe-based safety tests reliable, repeatable, and accepted by certification labs. Guangzhou Zhilitong Electromechanical Co., Ltd. understands how critical correct test probe usage is in ensuring accurate safety assessments and regulatory compliance in appliance and electronics testing.
Test Setup: Verifying Probe Geometry Against the Standard
How to Read the Standard Figure and Confirm Probe Dimensions
Test probes must precisely match the geometry specified in safety standards like IEC 61032 to deliver valid test results. This includes verifying diameter, length, and plate size of the probe relative to the referenced figure in the standard.
Begin by carefully reviewing the IEC 61032 figure that applies to your test. Each figure defines exact dimensions for test fingers, pins, or wires. Using detailed specification sheets, measure your probe with calipers or micrometers to ensure diameter tolerances, overall length, and plate or edge shape match the standard. For instance, a jointed finger probe must have the correct articulation points and segment lengths as defined.
It is important not only to confirm the physical dimensions but also to check the probe’s mechanical properties such as flexibility and rigidity. Some test standards require articulated fingers to simulate natural human finger movement, so any stiffness beyond specified limits can invalidate the test.
Common Mismatches Leading to False Failures
Incorrect probe geometry is a frequent cause of test failures unrelated to the device under test. Examples include using a finger probe with an overly large diameter or a pin that is too short, which can cause unwanted penetration or miss critical openings. Even slight deviations in plate size can alter how the probe interacts with the test sample.
Such mismatches waste time and resources as failed tests must be repeated or invalidated. Confirming the probe strictly adheres to the IEC 61032 figure before testing prevents costly retests and certification delays.
Moreover, improperly sized probes can pose safety hazards themselves by damaging delicate components or falsely indicating compliance where risk exists. A meticulous check at the setup stage is indispensable for lab efficiency and product safety assurance.
Fixturing and Force Control: Ensuring Reproducible Probe Contact
Why Proper Probe Fixturing Matters
Probe fixturing affects repeatability and accuracy significantly. A stable fixture ensures the test probe applies consistent force and approaches the test sample at the correct angle. Misalignment can result in uneven contact pressure or incorrect penetration, producing unreliable results.
Good fixtures also protect probes from damage by securing them firmly and preventing accidental drops or twists. Guangzhou Zhilitong Electromechanical Co., Ltd. offers custom fixtures designed to fit our test probes perfectly, enhancing test precision and durability.
A well-designed fixture accommodates slight variations in device shape but keeps probe contact uniform across test cycles. This repeatability is key when tests are audited or when multiple devices are tested in series.
Simple Fixture Checks Before Formal Testing
Before each test run, perform quick fixture checks such as verifying probe alignment visually or with measurement tools. Confirm the probe returns to its home position after contact and that no wobble or play exists in the setup.
Additionally, test the force applied by the probe with a calibrated force gauge to ensure it matches standard requirements. Regularly inspecting fixtures reduces variability and supports consistent compliance verification.
Routine fixture maintenance, including cleaning contact surfaces and tightening fasteners, also extends equipment life and prevents subtle errors.
Using Jointed vs. Rigid Fingers: Correct Techniques and Limits
When to Use Articulated Fingers vs. Rigid Probes

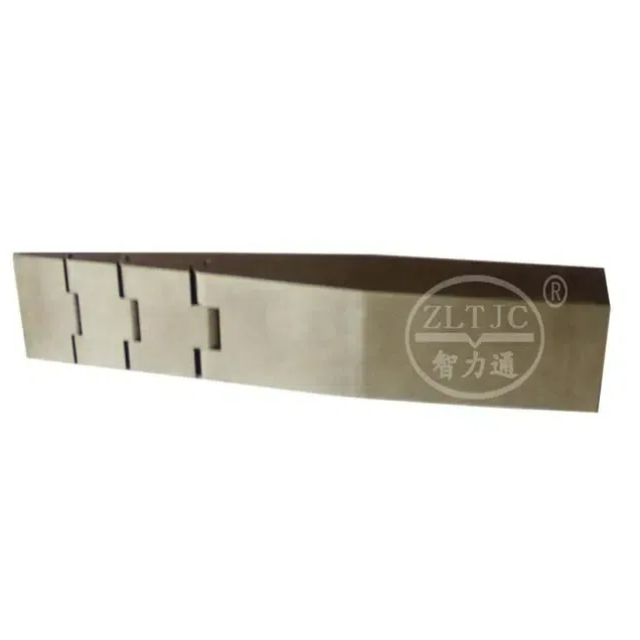

Jointed or articulated fingers simulate human finger movement and are ideal for testing complex openings or shapes where angles and flexibility matter. They allow bending at multiple joints to mimic real-world conditions.
Rigid fingers, with fixed geometry, are better suited for tests requiring consistent penetration depth and force. For example, in simple slot or hole access tests, rigid probes provide repeatable results with less risk of user error.
Selecting the correct finger type per IEC 61032 figures ensures tests reflect actual usage scenarios and meet regulatory expectations.
Safe Handling Tips to Avoid Injury and Damage
Always handle test probes with care to prevent injury and preserve probe integrity. Jointed fingers can pinch fingers if not manipulated properly, and rigid probes can have sharp edges.
Store probes in protective cases and avoid dropping or twisting them unnecessarily. Damaged or bent probes compromise test validity and should be repaired or replaced immediately.
Additionally, educate lab staff on proper handling techniques and enforce standard operating procedures to minimize accidental damage and maintain probe lifespan.
Electrical and Mechanical Safety Around Probes
Ensuring Proper Insulation and Current Limits
When performing live tests involving electricity, safety around test probes is paramount. Use probes with appropriate insulation and verify their rated current and voltage limits before testing.
Technicians should wear personal protective equipment (PPE) such as insulated gloves and use isolation transformers or residual current devices to minimize electrical hazards.
Guangzhou Zhilitong Electromechanical Co., Ltd. supplies test probes designed with high-quality insulating materials and meets international electrical safety standards, helping reduce risk during testing.
In addition, labs should conduct risk assessments to identify hazards in their testing environment and apply engineering controls to minimize exposure to live circuits.
Preventing Common Mistakes Leading to Failed Reports
Typical Errors in Labs and How to Avoid Them
Common mistakes include using the wrong probe model, testing with damaged tips, employing incorrect fixtures, or missing up-to-date calibration certificates. Each of these can invalidate test results and delay certification.
Establish checklists that ensure correct probe selection, visual inspection of tips for wear or deformation, fixture verification, and confirmation of calibration status before each test session.
Training new staff on these best practices and conducting periodic refresher sessions helps sustain high-quality testing standards.
Troubleshooting Flow for Test Failures
If a test fails unexpectedly:
Verify the probe geometry matches the referenced IEC 61032 figure exactly.
Inspect the test fixture for alignment and repeatability issues.
Check calibration certificates to confirm probes are within tolerance.
Re-run the test after addressing any identified problems.
This stepwise approach reduces downtime and improves test reliability.
Documentation and Traceability: What Labs Expect
Key Test Report Entries
Compliance labs require comprehensive documentation to validate test results. Reports should clearly list the test probe model and referenced figure, calibration status with certificate numbers, photos of the test fixture setup, and details of the test operator.
This transparency supports reproducibility and audit readiness.
How Calibration and Traceability Differentiate Suppliers
Guangzhou Zhilitong Electromechanical Co., Ltd. provides ISO and NIST traceable calibration certificates for all test probes. Our transparent calibration services and detailed specification sheets differentiate us from competitors by enabling clients to prove compliance confidently and pass audits without question.
Regular calibration intervals and documented maintenance plans further reinforce confidence in long-term probe performance.
Conclusion
Following these test probe safety best practices ensures your safety testing is reliable, repeatable, and accepted by certification bodies. Confirm probe geometry matches IEC 61032, maintain proper fixturing and force control, handle probes safely, and document every step meticulously. Choose suppliers like Guangzhou Zhilitong Electromechanical Co., Ltd. who offer custom solutions, traceable calibration, and comprehensive after-sales support to minimize compliance risks and streamline certification. Contact us today to learn more about how our test probes and calibration services can support your safety testing needs.
