Introduction
In the world of electrical engineering and product manufacturing, safety is not just a buzzword; it is a legal and ethical mandate. One of the most critical evaluations a plastic component or electrical part can undergo is the Needle Flame Test. This specialized procedure simulates the effect of a small flame, such as one resulting from a short circuit or a faulty component, to see if the material will ignite or spread fire.
If you have ever wondered how manufacturers ensure that a tiny spark inside your toaster or television doesn't turn into a house fire, the answer lies in the needle flame tester. This article provides an expert insight into the mechanics, standards, and equipment used in this vital safety assessment. We will explore the technical nuances of IEC 60695-11-5 compliance and why having a High precision testing environment is non-negotiable for modern Industrial quality control.
Defining the Needle Flame Test and Its Core Purpose
The Needle Flame Test is a simulation-based fire hazard test specifically designed for electrotechnical equipment, its sub-assemblies, and components. Unlike large-scale burn tests, this method uses a miniature flame—resembling a needle—to apply localized heat. The primary objective is to evaluate the flammability of solid insulating materials or other combustible materials used in electrical products.
When a fault occurs within a circuit, a small component might overheat and produce a flame. The needle flame tester replicates this exact scenario. It ensures that if a component catches fire, the flame will extinguish itself within a specified timeframe and will not drop burning particles that could ignite the surroundings. This test is foundational for achieving certifications related to the UL 94 standard, although it specifically follows the parameters set by international electrotechnical bodies.
By using an Industrial grade needle flame tester, engineers can determine the "flammability index" of their materials. This data allows them to choose safer plastics and composites during the design phase. It ultimately prevents catastrophic failures in consumer electronics, industrial machinery, and automotive components.
Technical Standards: Understanding IEC 60695-11-5
Every standardized test needs a "rulebook," and for the needle flame test, that rulebook is IEC 60695-11-5. This international standard specifies the test apparatus, the theoretical test procedure, and the requirements for the test flame. Compliance with this standard ensures that a test performed in one country is valid and repeatable in another.
The Role of the Standard in Quality Assurance
The IEC 60695-11-5 standard defines everything from the gas type used (typically butane or propane) to the exact dimensions of the burner tube. A High precision needle flame tester must adhere to these dimensions—specifically a tube length of at least 35mm with an internal diameter of 0.5mm. Any deviation from these metrics can lead to inaccurate results, which might compromise product safety.
How Standards Influence Equipment Design
Manufacturers of testing equipment often integrate these standards directly into their hardware. A modern PLC controlled needle flame tester will have the IEC 60695-11-5 parameters pre-programmed. This reduces human error. Instead of a technician manually timing the flame application, the machine handles it with Digital display accuracy. This level of automation is what separates professional Industrial testing labs from basic setups.

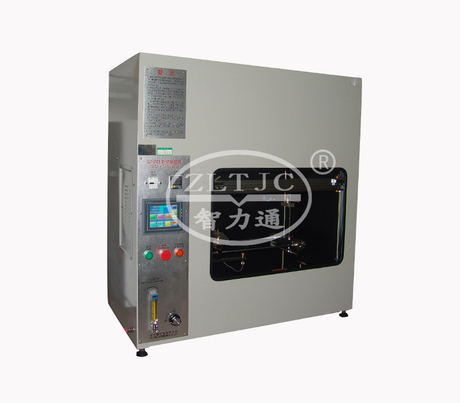

Essential Components of a Modern Needle Flame Tester
To perform a valid test, the equipment must be more than just a gas burner. A professional needle flame tester is a sophisticated piece of laboratory machinery designed for repeatability and safety.
| Component | Function | Why it Matters |
| Burner Tube | Delivers a 12mm ± 1mm flame | Essential for High precision heat application. |
| PLC System | PLC controlled timing and movement | Ensures the flame is applied for the exact duration required. |
| Digital Display | Shows real-time data | Provides a Digital display of flame height and burn time. |
| Chamber | Enclosed testing area | Protects the flame from drafts and contains smoke. |
| Gas Control | Adjusts flow rate | Maintains the specific flame temperature (approx. 700°C). |
The Industrial environment demands that these components work together seamlessly. For instance, the Digital display allows the operator to monitor the temperature of the copper block used to calibrate the flame. Without this High precision feedback, the test would be subjective and legally indefensible. Furthermore, a PLC controlled system allows for the automatic approach and withdrawal of the flame, ensuring that the distance between the burner and the specimen remains constant throughout the test.
Step-by-Step Procedure: How the Test is Conducted
Conducting a Needle Flame Test requires a strict sequence of events. It is not as simple as holding a lighter to a piece of plastic. It involves calibration, precise positioning, and careful observation.
Preparation and Calibration
First, the technician prepares the specimen. They must clean it and conditioned it at a specific temperature and humidity. Then, they calibrate the needle flame tester. They use a temperature-sensing copper block to verify the flame's heat. The standard requires the flame to raise the block's temperature from 100°C to 700°C within a specific time window (usually 23.5 ± 1 seconds).
The Application Phase
Once calibrated, the specimen is mounted. The PLC controlled arm moves the burner at a 45-degree angle or vertically toward the specimen. The flame is applied for a duration (Ta) specified in the product standard—often 5, 10, 20, 30, 60, or 120 seconds. During this time, the operator watches for ignition. If the specimen ignites, the clock continues to run after the flame is removed to measure the duration of burning (Tb).
Observation and Reporting
The test also monitors for "dripping." If the material melts and drips, these drops fall onto a piece of tissue paper or a wooden board placed below. If the paper ignites, the material fails the test. This mimics the UL 94 standard logic, where the goal is to prevent the secondary ignition of nearby materials. All these times and observations are logged via the Digital display for the final report.
Critical Factors for a Passing Grade: Success Criteria
What determines if a material passes or fails when subjected to a needle flame tester? It isn't just about whether it catches fire; it's about how the fire behaves.
No Flame/No Glow: Ideally, the specimen does not ignite at all.
Self-Extinguishing: If it does ignite, the flame or glowing must extinguish itself within 30 seconds after the burner is removed (Tb < 30s).
No Ignition of Underlayer: The tissue paper or white pine board underneath must remain uncharred and unignited.
Limited Spread: The flame must not reach the edges of the specimen if it's a specific size.
Using a High precision needle flame tester is the only way to verify these criteria with certainty. In an Industrial setting, "close enough" is never acceptable. A failure in the needle flame test often requires the manufacturer to change the chemical composition of their plastic, perhaps adding more flame retardants. These changes can affect the cost and mechanical strength of the part, making the accuracy of the needle flame tester vital for the company’s bottom line.
Comparing Needle Flame Tests to Glow Wire and UL 94
While the needle flame test is common, it is often confused with other flammability tests. Understanding the differences is key for regulatory compliance.
Needle Flame vs. Glow Wire Test
The Glow Wire test uses a heated wire (conductive heat) rather than an open flame (convective heat). While both tests are part of the IEC family, they simulate different fault conditions. The glow wire replicates an overheated connection, while the needle flame tester replicates a localized fire.
Needle Flame vs. UL 94 Standard
The UL 94 standard is a broader classification for plastic flammability. It includes horizontal and vertical burn tests. While a material might have a UL 94 V-0 rating, it may still be required to pass a needle flame test to satisfy specific electrotechnical safety standards like IEC 60335 for household appliances.
Which One Should You Use?
Usually, the specific product category determines the test. For instance, small internal components in high-voltage areas are almost always subjected to a needle flame tester. Large enclosures might only need UL 94. However, high-end Industrial labs often have equipment capable of performing multiple types of tests to ensure total compliance.
Advancements in Testing Technology: PLC and Digital Integration
The days of manual stopwatches and analog gauges are over. The latest needle flame tester models have embraced digital transformation to provide better data and safer operation.
The Power of PLC Control
A PLC controlled unit allows for complex testing sequences to be saved and repeated. This is particularly useful for manufacturers who produce a wide variety of parts. They can simply select the "60-second test" on a touchscreen, and the machine handles the rest. This automation ensures that every test is performed with High precision, regardless of the operator's experience level.
Digital Displays and Data Export
Modern units feature a Digital display that shows more than just a timer. They display gas pressure, flame height (via optical sensors), and even internal chamber temperature. In an Industrial 4.0 environment, these testers can export data directly to a laboratory information management system (LIMS). This creates a permanent, tamper-proof record of compliance, which is invaluable during safety audits.
Enhanced Safety Features
Safety for the operator is also improved. New Industrial testers include ventilation systems that automatically clear toxic fumes after a test is completed. Gas leak detectors and automatic shut-off valves are also standard in High precision models, protecting the lab from the very fire hazards they are trying to measure.
Why High Precision Matters in Industrial Testing
In fire safety, a 1-second error can be the difference between a "Pass" and a "Fail." This is why High precision is the most sought-after attribute in a needle flame tester.
If a tester is not precise, a manufacturer might pass a product that is actually dangerous. Conversely, they might fail a perfectly good batch of material, wasting thousands of dollars in production costs. Industrial manufacturers cannot afford this inconsistency. They need a needle flame tester that provides the same result every single time.
This precision extends to the flame's temperature. If the gas flow is slightly off, the flame might be 650°C instead of 700°C. This lower heat might not ignite the plastic, leading to a false sense of security. A PLC controlled gas regulation system ensures the energy output of the flame remains constant, providing a true challenge to the material's fire resistance.
Conclusion
The Needle Flame Test remains a cornerstone of electrical safety. By simulating the "worst-case scenario" of a localized fire, it protects millions of people from the hidden dangers within their electronic devices. For manufacturers, investing in a High precision, PLC controlled needle flame tester is not just about ticking a box for IEC 60695-11-5 compliance—it is about building a brand centered on reliability and safety.
From the Digital display that provides clear data to the strict adherence to the UL 94 standard, every aspect of this test is designed to push materials to their limit. As electronics become smaller and more powerful, the role of the needle flame tester in the Industrial sector will only grow in importance.
FAQ
Q: Can I use a regular Bunsen burner for a needle flame test?
A: No. A standard Bunsen burner cannot provide the High precision needle-shaped flame or the specific internal diameter required by IEC 60695-11-5. You must use a dedicated needle flame tester.
Q: What materials are typically tested?
A: Almost any solid insulating material used in electronics, such as circuit board laminates, connector housings, and switch covers.
Q: How often does a needle flame tester need calibration?
A: Most Industrial standards suggest a calibration check before every series of tests, using a copper block to verify the flame temperature and heating time.
Q: Is the needle flame test destructive?
A: Yes. The specimen is subjected to fire and often undergoes physical deformation or charring, meaning it cannot be used in a finished product after testing.
