Universal Testing Machines (UTMs) are essential tools used for testing the mechanical properties of materials under controlled conditions. They can perform various tests, including tensile, compression, bending, and shear tests, and are widely used in industries such as manufacturing, aerospace, automotive, and construction. Operating a UTM involves several key steps to ensure accurate and reliable results. In this article, we will guide you through the process of operating a Universal Testing Machine, from preparation to data analysis.
Whether you are new to UTMs or need a refresher, understanding the proper operation of this equipment is crucial for performing successful material tests and obtaining reliable results.
1. Understanding the Basic Components of a UTM
Before operating a UTM, it's important to understand its key components and their functions. A Universal Testing Machine consists of several parts that work together to apply force and measure material properties:
Load Frame: The main structure of the machine, which houses the other components. It is designed to withstand the forces applied during testing.
Crosshead: The moving part that applies the force to the test material. It moves up or down depending on whether the test is tensile or compressive.
Load Cell: A sensor that measures the force being applied to the material. It converts the mechanical force into an electrical signal that is recorded by the system.
Grips or Fixtures: These are used to secure the test material in place. They vary depending on the type of test and material.
Control System: The computer system that controls the UTM, including setting test parameters, applying force, and recording data.
Data Acquisition System: Software that collects and analyzes the data generated during the test, often producing stress-strain curves or other relevant graphs.
2. Preparation Before Operating the UTM
Proper preparation is crucial for accurate testing results. Here are the steps you should follow before starting a test:
Select the Correct Test Type
First, determine which type of test you need to perform (tensile, compression, bending, etc.). The type of test will dictate the configuration of the UTM, the fixtures to be used, and the material specifications.
Tensile Test: Used to measure how a material reacts to forces that attempt to pull it apart. This test is commonly used for materials like metals, plastics, and textiles.
Compression Test: Used to evaluate how a material withstands compressive forces. It is typically used for materials like concrete, rubber, and polymers.
Bending Test: Used to measure the material's resistance to bending. It is often used for structural components like beams and panels.
Shear Test: Used to measure a material’s response to forces applied parallel to its surface.
Prepare the Test Specimen
Size and Shape: Ensure that the specimen matches the required size and shape for the test. For tensile tests, this might mean cutting the material into a standardized dog-bone shape, while for compression tests, you may need to ensure the material is in the form of a cylinder or cube.
Surface Preparation: Clean the surface of the specimen to remove any dirt, oil, or other contaminants that could affect the results.
Align the Specimen: Proper alignment of the specimen within the machine is crucial. Misalignment can lead to uneven loading and inaccurate results.
Choose the Appropriate Fixtures and Grips
Select the correct grips or fixtures based on the material being tested. The grips should securely hold the specimen without damaging it. For tensile tests, pneumatic or hydraulic grips are often used, while for compression tests, platens are typically used to apply compressive forces evenly.
3. Setting Up the UTM for Testing
Once the specimen is prepared and the correct fixtures are selected, you are ready to set up the UTM.
Adjust the Crosshead and Load Cell
Before starting the test, adjust the position of the crosshead. For tensile tests, the crosshead should be set to apply force in an upward direction, whereas for compression tests, it should apply downward force. Make sure the load cell is properly calibrated to measure force accurately.
Set the Testing Parameters
Using the control system or software, set the parameters for the test, including:
Test Speed: Choose the rate at which the crosshead moves. For tensile tests, this is typically a slow rate to observe material behavior, while for compression tests, the speed may be faster.
Maximum Load: Set the maximum force that will be applied to the specimen. This is based on the material's expected strength and the machine's load capacity.
Strain Limit (if applicable): For tests where displacement is important (e.g., tensile or bending tests), set the strain limit to determine when to stop the test.
Zero the Load Cell
Ensure that the load cell is zeroed before starting the test. This ensures that the measurement begins from a baseline and that no residual force is measured at the beginning of the test.
Check for Proper Alignment
Check that the specimen is properly aligned with the load cell and fixtures. Misalignment can lead to uneven force distribution and skewed results.
4. Running the Test
Once everything is set up, it's time to begin the test.
Start the Test
Initiate the test by activating the control system. The UTM will begin applying the force to the specimen according to the set parameters.
Tensile Test: The crosshead will move upwards, stretching the material until it reaches the breaking point.
Compression Test: The crosshead will move downward, compressing the material until failure or the desired compression level is reached.
Bending Test: The material will bend as the force is applied in the center, and the displacement will be measured.
Shear Test: The machine will apply force parallel to the surface of the specimen, causing it to shear.
Monitor the Test
While the test is running, monitor the UTM to ensure everything is functioning correctly. Watch the force being applied and the displacement of the specimen to ensure there are no issues during the test. Some UTMs have built-in safety features that will stop the test automatically if the force exceeds a certain limit or if the specimen fails unexpectedly.
End the Test
Once the specimen has reached its breaking point or the pre-set limits, the test will end automatically or manually, depending on the UTM settings.
5. Post-Test Procedures
After the test is complete, several steps should be taken to ensure the results are properly recorded and analyzed.
Analyze the Data
Using the data acquisition system or software, analyze the results. The UTM will typically generate a stress-strain curve that shows how the material deformed under load. This curve provides valuable insights into the material’s tensile strength, elastic modulus, yield strength, and elongation.
Tensile Test Data: The stress-strain curve will show the point of fracture and provide information about the material's ductility and toughness.
Compression Test Data: The data will show how the material behaves under compressive forces and how much it can compress before failure.
Bending Test Data: The curve will show the material’s resistance to bending and the maximum deflection it can withstand.
Record the Results
Record the data in the system or generate a report. It is important to document the test conditions, the specimen's material properties, and any deviations that might have occurred during the test.
Clean the Machine
After testing, clean the machine and the area around it. This will prevent any debris or residue from affecting future tests and maintain the longevity of the equipment.
6. Safety Considerations When Operating a UTM
When operating a UTM, safety is paramount. Here are some safety tips to keep in mind:
Wear Personal Protective Equipment (PPE): Always wear safety glasses, gloves, and appropriate clothing to protect yourself from any potential hazards.
Proper Training: Ensure that operators are properly trained on how to use the UTM and understand the machine's capabilities and limitations.
Routine Maintenance: Regularly inspect the UTM to ensure it is in good working condition, and follow the manufacturer’s recommended maintenance schedule.
Conclusion
Operating a Universal Testing Machine is a straightforward process if you follow the necessary steps and procedures. From preparing the specimen to setting the testing parameters and analyzing the data, each step plays a critical role in obtaining reliable and accurate results. Understanding how to operate a UTM properly will help you ensure the reliability of the materials used in your products and guarantee that they meet the necessary standards.

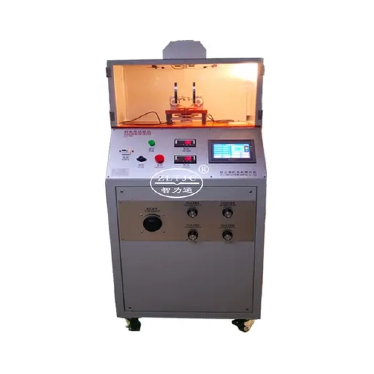

At Guangzhou Zhilitong Electromechanical Co., Ltd., we offer high-quality Universal Testing Machines that are easy to operate and capable of providing accurate, reliable results for a wide range of material testing applications. Our machines are designed to meet the highest standards in accuracy and efficiency, ensuring that your testing processes are seamless and effective.
