Pin Bending Test Apparatus

Pin Bending Test Apparatus
We are professional Pin Bending Test Apparatus manuafcturers, Pin Bending Test Apparatus,to bending test for all flat pins of plugs rated up tp including 15 A,according to AS/NZS 3112 clause 2.13.7.2 and figure 2.8.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

  • ZLT-PB1

  • ZLTJC

  • ZLT-PB1

Pin Bending Test Apparatus.

Product details:ZLT-PB1

To bending test for all flat pins of plugs rated up to and including 15 A,according to AS/NZS 3112 clause 2.13.7.2 and figure 2.8.                                                                                       Technical Specification:

The distance from the fixture to the end face of the plug:: 14 mm±0,5mm,from the end face of the plug.

Force application distance:7.5±0.3㎜.

Operation method: Manual.

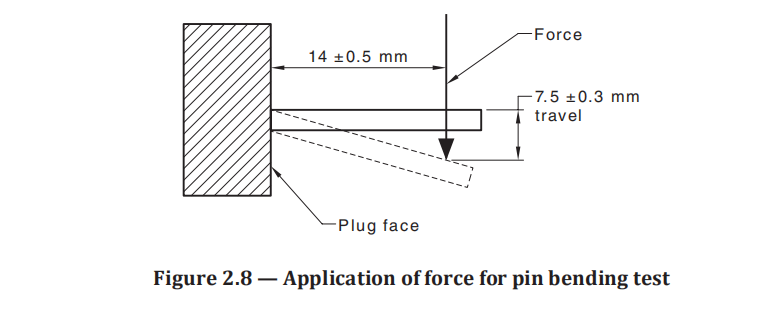

ASNZS 3112 figure 2.8
