Introduction
Safety is the backbone of the electronics industry. When a component fails, it often generates heat or even sparks. The critical question is: will the surrounding plastic catch fire? To answer this, engineers look to the IEC 60695-11-5 standard. This specific international protocol simulates the effect of a small flame, such as one from a short circuit, hitting a material.
Understanding this standard requires more than just reading a manual. It involves knowing how a needle flame tester operates under Industrial conditions to provide repeatable results. Whether you are testing insulators or complex circuit boards, complying with this IEC standard is mandatory for global market access. In this guide, we will break down the technical requirements, the equipment used, and why a High precision approach is necessary for fire hazard testing.
Defining the Core Standard: IEC 60695-11-5
The primary standard governing this procedure is IEC 60695-11-5. It replaced the older IEC 60695-2-2 and focuses on fire hazard testing for electrotechnical products. The core goal is to simulate a "small source" fire. Think of a resistor overheating or a loose connection creating a tiny flame.
This standard specifies the apparatus, the test flame arrangement, and the summary of the procedure. It ensures that if a manufacturer in Asia and a lab in Europe both use an Industrial grade needle flame tester, they will get the same results. It is not just about whether a material burns; it is about how long it burns and if it drips flaming particles.
They designed the test to be severe but realistic. It uses a burner pipe with a very specific bore (0.5mm) to produce a 12mm high flame. This mimics the concentrated heat of a localized electrical fault. For many, following this standard is the only way to prove their product won't turn a small malfunction into a house fire.
Technical Specifications of a Modern Needle Flame Tester

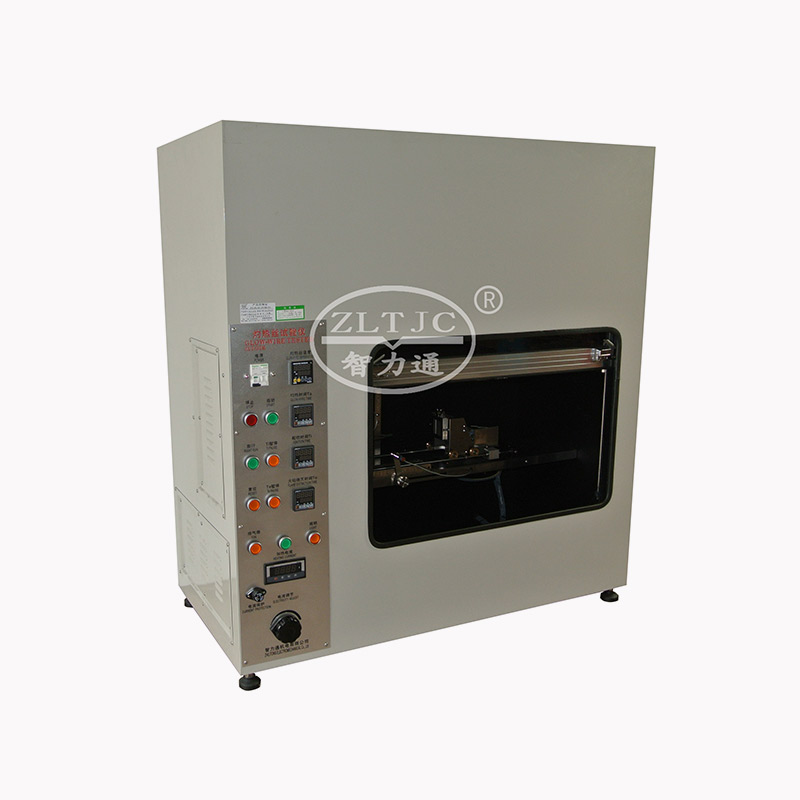

To meet the IEC 60695-11-5 requirements, the equipment must be built with extreme accuracy. A standard needle flame tester is essentially a combustion chamber equipped with a specialized burner and control system.
Why Precision Matters
A High precision burner is the heart of the machine. The standard dictates the gas flow, the temperature of the flame, and the angle of application. If the burner is off by even a few millimeters, the test is invalid. Modern labs now prefer a PLC controlled system. This allows the operator to automate the movement of the flame toward the sample. It removes human error, which is vital when you are dealing with seconds and millimeters.
Key Components
The Burner: A stainless steel tube with a length of at least 35mm.
The Chamber: A draft-free volume of at least 0.5 cubic meters to ensure oxygen doesn't run out during the test.
Timing System: Usually a Digital display that tracks "Time of Application" (Ta) and "Duration of Burning" (Tb).
Modern Industrial units also include an exhaust system to safely remove toxic fumes after the test is complete. Without these specific features, you cannot claim compliance with the IEC standard.
The Procedure: How the Needle Flame Test is Conducted
The process is methodical. First, we prepare the specimen. It could be a finished part or a plaque of the raw material. We then position it inside the needle flame tester.
Step-by-Step Execution
Gas Adjustment: We use butane or propane gas. We adjust the flame height to 12mm ± 1mm.
Temperature Verification: Before the test, we check the flame's "potency." We use a copper block and a thermocouple to measure how long it takes for the temperature to rise from 100°C to 700°C. For IEC 60695-11-5, this should take 23.5 seconds ± 1.0 seconds.
Application: The flame is applied to the specimen at a 45-degree angle. This represents the worst-case scenario where a flame might lick up the side of a component.
Observation: We record the time the flame is applied (usually 5, 10, 20, 30, 60, or 120 seconds). Once the flame is removed, we watch for how long the specimen continues to burn.
If the specimen drips, we check the tissue paper placed underneath. If the paper ignites, the material fails. It is a simple but effective "pass/fail" metric that ensures safety in the real world.
Comparing IEC 60695-11-5 and the UL 94 Standard
Many people confuse the needle flame test with the UL 94 standard. While both involve burning plastic, they serve different purposes and use different equipment.
Key Differences
The UL 94 standard generally categorizes materials (HB, V-0, V-1, V-2) based on how they burn in a vertical or horizontal position using a larger Bunsen burner. The IEC needle flame test is much more localized. It is often used for end-product testing—testing the actual casing of a switch rather than just a strip of the plastic it is made from.
Table: Comparison of Standards
| Feature | IEC 60695-11-5 | UL 94 Standard |
| Burner Type | 0.5mm Needle Burner | 9.5mm Bunsen Burner |
| Flame Height | 12mm | 20mm to 125mm |
| Primary Goal | Component safety simulation | Material flammability rating |
| Equipment | Needle flame tester | Horizontal/Vertical Flame Tester |
Using an Industrial needle flame tester provides a "surgical" look at fire risks. It is the preferred method for the telecommunications and appliance industries because it mimics the small-scale faults common in high-density electronics.
Automation and the PLC Controlled Advantage
In the past, these tests were manual. An operator held a stopwatch and moved the burner by hand. This led to massive inconsistencies. Today, a PLC controlled needle flame tester is the industry standard for any serious lab.
Benefits of Automation
A PLC controlled system manages the "dwell time" (how long the flame touches the sample) with millisecond accuracy. It also controls the motorized drive that brings the flame to the sample. This ensures the approach speed is constant, which is a subtle requirement of the IEC 60695-11-5 protocol.
User Interface and Data
With a Digital display, operators can see real-time data. They can pre-set test parameters for different materials. This is especially helpful for Industrial manufacturers who need to test hundreds of batches. If a batch fails, the system logs the exact moment it happened. This data is vital for "Root Cause Analysis" when redesigning a part to be more fire-resistant.
Interpreting Test Results: What Constitutes a "Pass"?
A High precision test is useless if you don't know how to read the results. IEC 60695-11-5 provides clear criteria for what is acceptable.
The Criteria for Success
The specimen is considered to have passed the needle flame test if one of the following occurs:
There is no flame or glowing of the specimen.
The duration of burning (Tb) is less than 30 seconds after the test flame is removed.
The burning does not spread to the top of the specimen or ignite the wrapping tissue underneath.
Why Tb Matters
The duration of burning tells us about the material's self-extinguishing properties. If a material stops burning as soon as the source is removed, it is safe for use in unattended appliances like washing machines or routers. If it continues to smolder, it poses a long-term risk. Using a needle flame tester with a calibrated Digital display ensures these times are captured without bias.
Selecting the Right Industrial Needle Flame Tester
If you are setting up a lab, you need to choose equipment that will last. An Industrial environment is harsh; the heat and soot from repeated tests can degrade low-quality machines.
Essential Selection Factors
Chamber Material: Look for high-grade stainless steel that resists corrosion from combustion byproducts.
Optical Access: A large, heat-resistant glass window is necessary so the operator can see the specimen clearly without opening the door and introducing a draft.
Calibration Support: Ensure the needle flame tester comes with a calibration certificate for the thermocouple and the burner dimensions.
Safety Systems: It must have a gas leak detection and a prompt shut-off valve.
Investing in a High precision unit might cost more upfront, but it prevents the nightmare of a product recall. If your internal lab says a product passed, but a third-party certifier says it failed because your equipment was uncalibrated, the costs are astronomical.
Troubleshooting Common Challenges in Needle Flame Testing
Even with the best needle flame tester, things can go wrong. Results might vary, or the flame might not behave as expected.
Common Issues and Solutions
Unstable Flame: This is usually due to poor gas quality or a draft in the room. Ensure the Industrial lab's HVAC system isn't blowing directly on the chamber.
Temperature Rise Failures: If your copper block won't reach 700°C in the allotted time, check the needle for soot buildup. A High precision 0.5mm hole is easy to clog.
Sample Warping: Some plastics melt away from the flame before they ignite. The standard allows you to "follow" the sample with the flame, but this requires a skilled operator or a sophisticated PLC controlled tracker.
Maintaining Accuracy
Regularly clean the burner with a fine wire. Calibrate the Digital display and timing circuits every six months. Consistency is the only way to satisfy auditors during an ISO inspection.
Conclusion
The IEC 60695-11-5 standard is a vital shield for consumers and a strict benchmark for manufacturers. By using a High precision needle flame tester, companies can ensure their products are ready for the global market. From the PLC controlled movements to the Digital display readouts, every part of the machine works to prove that a small spark won't lead to a catastrophe. Following these guidelines ensures your testing is accurate, repeatable, and compliant with international safety law.
FAQ
Q: Can I use a standard Bunsen burner for the IEC 60695-11-5 test?
A: No. The standard requires a specific 0.5mm needle burner. A Bunsen burner flame is too large and does not provide the localized heat density required by the IEC protocol.
Q: Is the needle flame test required for all electronics?
A: It is required for most electrotechnical equipment, especially parts that are "unattended" or likely to experience electrical overstress. Many Industrial standards for appliances and telecommunications specifically cite this test.
Q: How does this test differ from the Glow Wire test?
A: The Glow Wire test simulates a hot surface (contact), while the needle flame test simulates an actual open flame (small fire source). Both are often required for a full safety profile.
